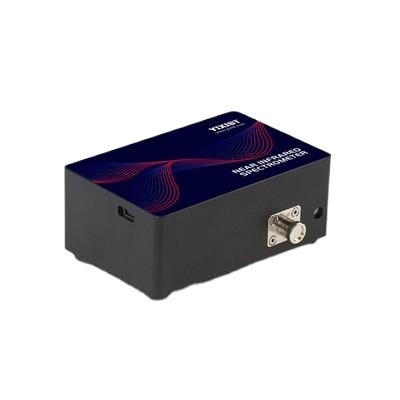

High SNR YIXIST YSM-8105-05 128 Pixels InGaAs NIR Spectrometer HAM G13913 Pixels 50*250um 950-1700nm

Name: High SNR YIXIST YSM810505 128 Pixels InGaAs NIR Spectrometer HAM G13913 Pixels 50250um 9501700nm
Brand: YIXIST
Price: 5 USD

Wholesale High SNR YIXIST YSM-8105-05 128 Pixels InGaAs NIR Spectrometer HAM G13913 Pixels 50*250um 950-1700nm from china suppliers

Place of Origin : Zhejiang, China

Brand Name : YIXIST

Model Number : YSM-8105-05

Price : $5,162.00/pieces >=1 pieces

Warranty : 1 year

Customized support : OEM, ODM

Size : 94mm*60mm*36.5mm

Wavelength Range : 950-1700nm

Model : YSM-8105-05

Dimension : 94mm*60mm*36.5mm

Optical resolution : ~10nm (pre-configured 25um slit)

Fiber connector : SMA905

Detector : InGaAs

Pixel : 128 pixels Pixel size 50um*250um

Signal to noise ratio : 10000:1

Dynamic range (Single) : 14000:1

Operating Temperature : 5℃-35℃ (recommended temperature 25℃)

MOQ : 1 unit

Contact Now

High SNR YIXIST YSM-8105-05 128 Pixels InGaAs NIR Spectrometer HAM G13913 Pixels 50*250um 950-1700nm

PRODUCT OVERVIEW

With the compact size and Hamamatsu 128 pixels InGaAs detector, YSM-8105-05 series NIR spectrometers have extremely low power consumption within the wavelength range of 950nm-1700nm, which is suitable for the applications of food sorting, biopharmaceutical and life sciences, as well as system integration. With the replaceable slit design, the spectrometer can be configured as different resolutions and sensitivities for different applications.

Feature

Hamamatsu 128 pixels uncooling InGaAs detector Compact size and easy for system integration Replaceable slit design for different resolution and sensitivity Real-time display peak wavelength and FWHM RS232, Trigger modes, SDK and Deep customization are available

Application

Grain and seed moisture analysis Quality monitoring of Fruits and Meat Process monitoring of Drug and Plastics manufacturing NIR Laser's CWL and FWHM

MODEL LIST

PRODUCT SPECIFICATIONS

Model	YSM-8105-05
Detector	InGaAs 128 pixels Pixel size 50µm×250µm Wavelength response range 950nm-1700nm
Dimension	94mm×60mm×36.5mm
Wavelength Range	950nm-1700nm (pre-configured)
Optical Resolution	~10nm (pre-configured 25µm slit)
A/D	16bit
Signal-to-Noise Ratio	10000:1
Integration Time	0.1ms-65s
Dynamic Range	14000:1
Trigger Mode	4 types (normal trigger, software trigger, hardware trigger, synchronous trigger)
Power Consumption	5VDC,300mA
Fiber Connector	SMA905
Operating Temperature	5℃-35℃ (recommended temperature 25℃)
Communication Interface	USB2.0, RS232
Operating System	Win XP, Win 7, Win 8, Win10
Power Supply	USB

TYPICAL TESTING
